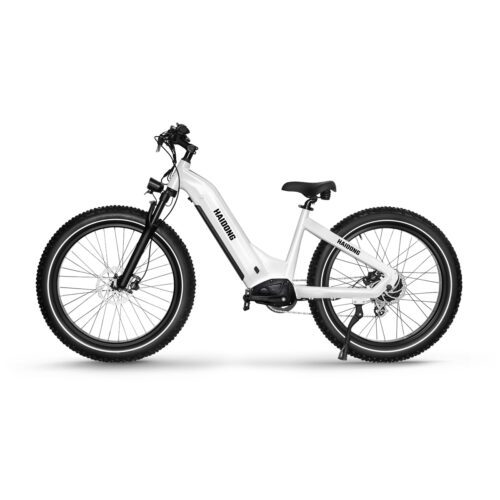

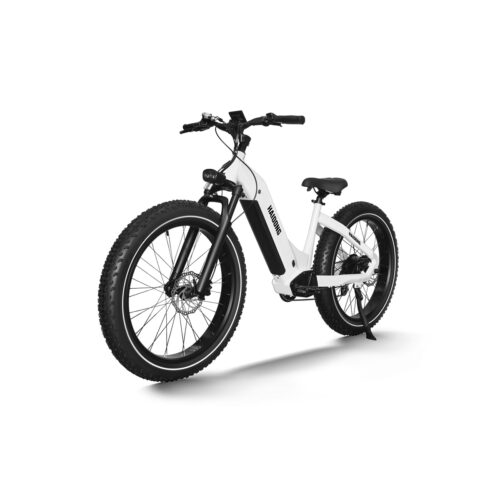

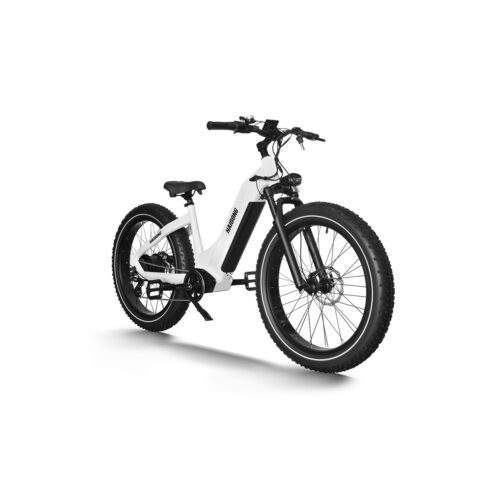

HAIDONG Whale Electric Fat Bike

(2 customer reviews)
  • 750W Upgraded Brushless Geared Hub Motor. Use the latest updated inner ring specialized in high-temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy.
  • 48V 20AH Samsung/LG Lithium-ion Battery with a 5000mAh single cell capacity in a smaller size but larger diversity. A single charge can last up to 60 miles on pure electric power and over 80+ miles with pedal-assist. The battery will maintain 80% capacity after 800 charges.
  • 26″X4″ Kenda all-terrain fat tires provide upgraded grip and superior shock absorption ability. Even in the most challenging terrains and weather conditions, these fat tires guarantee your safety and offer you an easy and smooth riding experience.
  • The 48V luminosity spotlight is 20% brighter than LED light. Visibility is improved to guarantee your safety while riding at night.

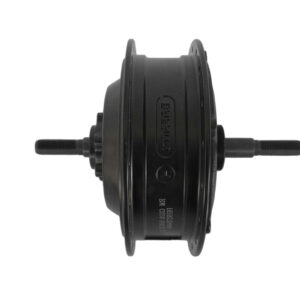

Please Note: The e-bike can be replaced with 500W Bafang Mid-drive, 9-speed freewheel, and Tektro brake.

Category:

6061Aluminum

Frame

750W/Max 86Nm

Geared Hub Motor

48V 20Ah

Samsung Battery

60-80miles

Miles per Charge

7 Speed

Shimano Gear Shift System

180kg

Payload Capacity

Controller

48V 22A

Pedal Assist Intelligent

0-5

Recommended Rider Heights

5’3”~6’4”

Tires

 26″ x 4″ Kenda fat tires

Front Fork

Alloy front suspension fork with lockout and adjustment

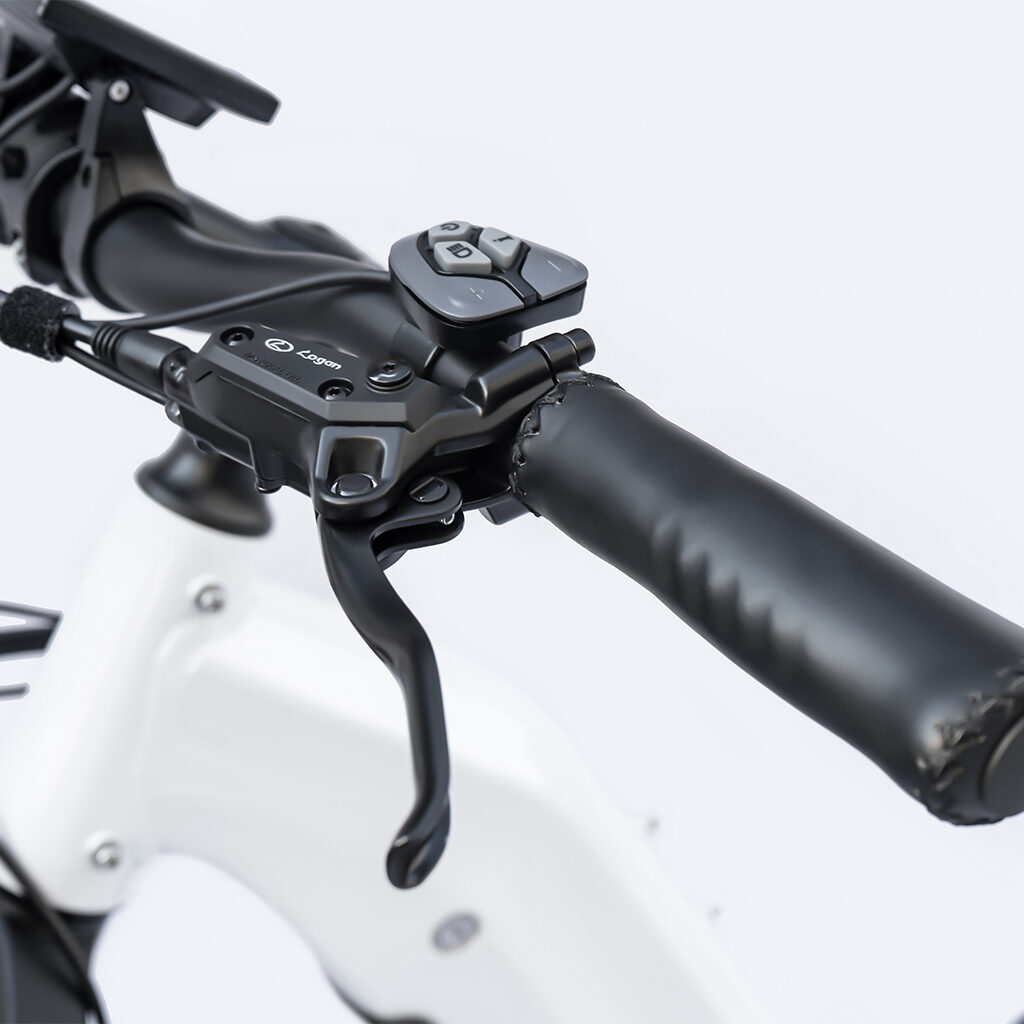

Brake Lever

Aluminum alloy comfort grip levers with motor cutoff switch

Throttle

Half twist throttle

Rear Light

Integrated taillight

Weight

36kg

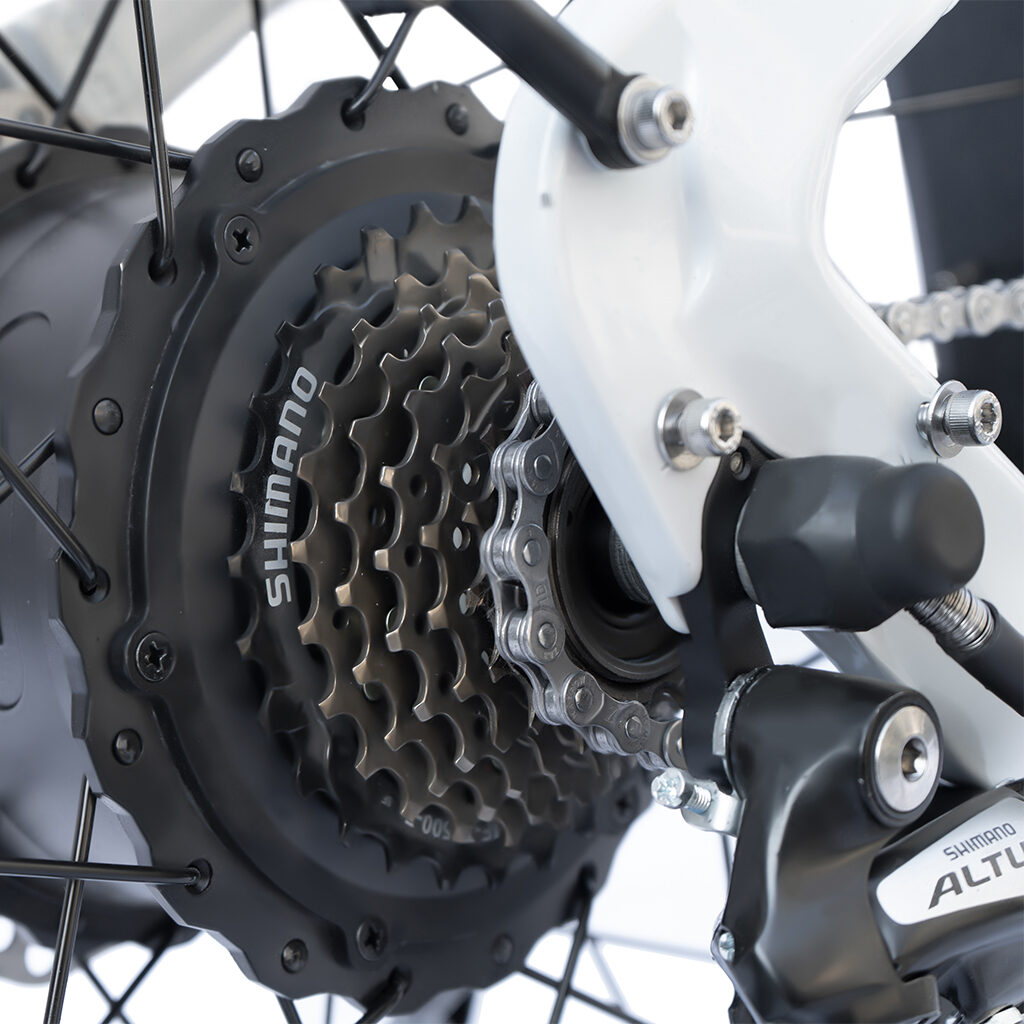

Freewheel

Shimano 7 speed gear shift system

Bike Frame

6061 Aluminum frame

Brake

180MM Hydraulic brakes

Front Light

48V LED light

Chain

KMC chain

Saddle

SR saddle

Stem

Promax MA-400 SSABK

Seat Post

Diameter 30.9mm length 300mm

Crank

170mm forged alloy

Kickstand

Heavy duty aluminum

Gearing

Shimano- 14-28T BROWN/BK

Wheels

13 Gauge on the front / 12 Gauge on the back

HAIDONG Whale brake disc
HAIDONG Whale Electric Fat Bike derailuer
HAIDONG Whale Electric Fat Bike stand
HAIDONG Whale Electric Fat Bike pedal

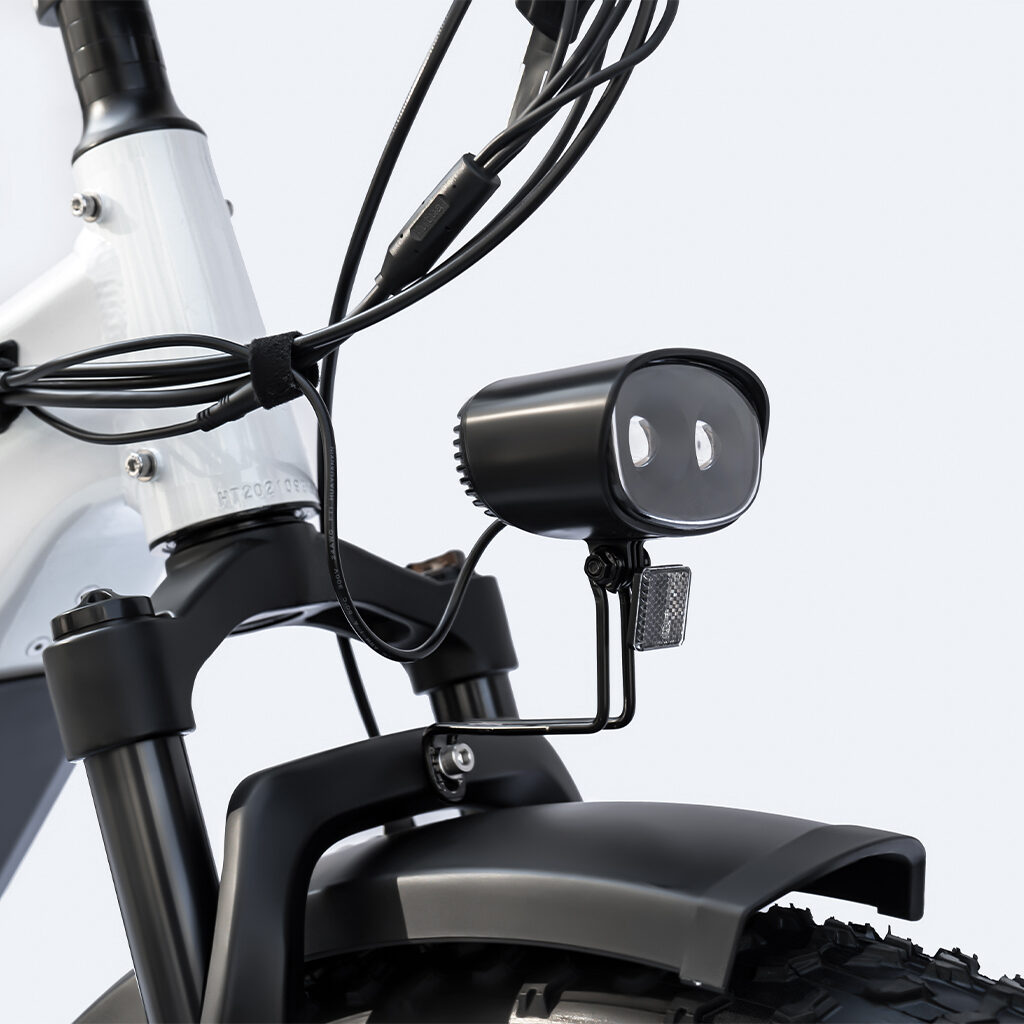

HAIDONG Whale Electric Fat Bike head light

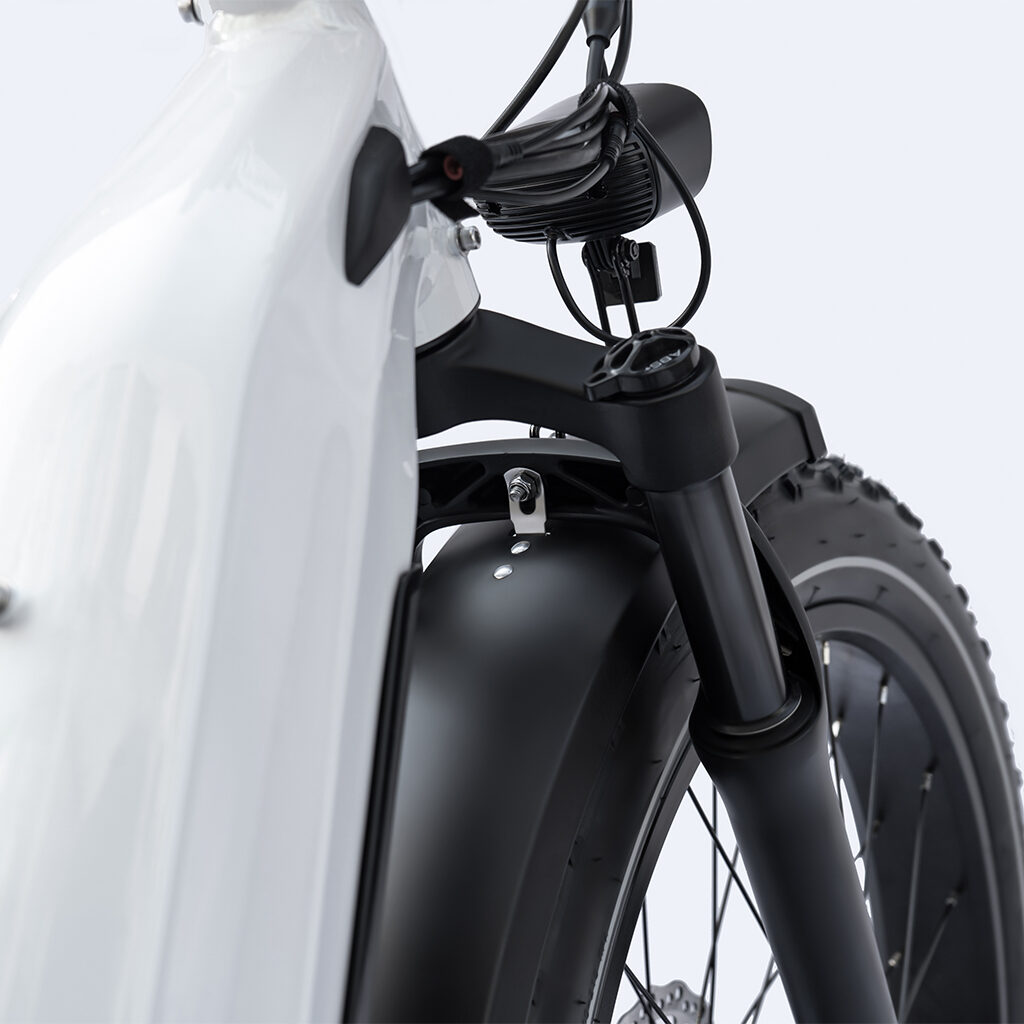

HAIDONG Whale Electric Fat Bike front suspension
HAIDONG Whale Electric Fat Bike derailluer

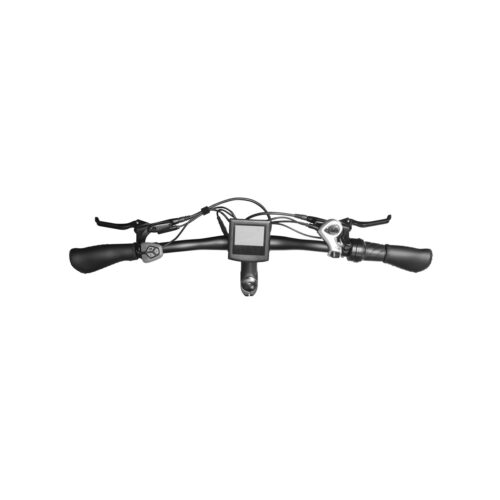

HAIDONG Whale Electric Fat Bike handle bar

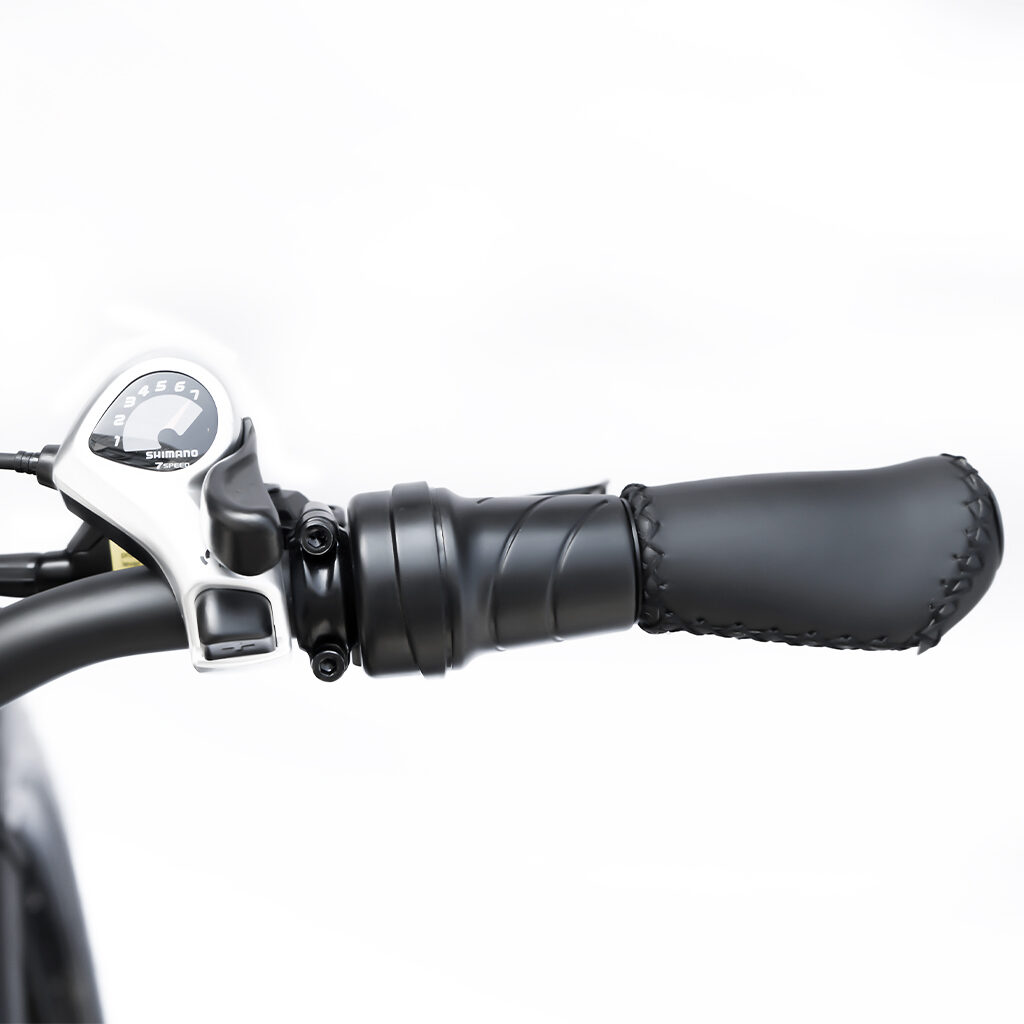

HAIDONG Whale Electric Fat Bike Handlebar
Haidong Whale Product size 1
