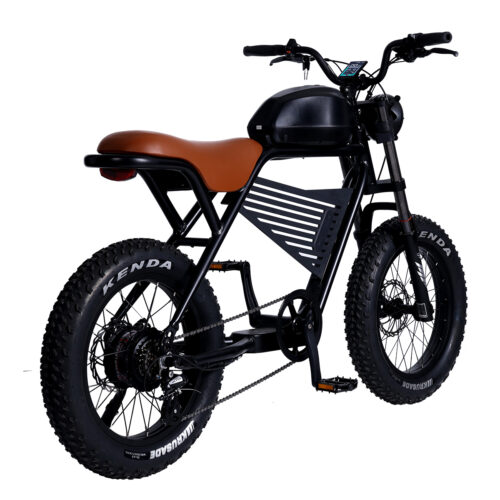

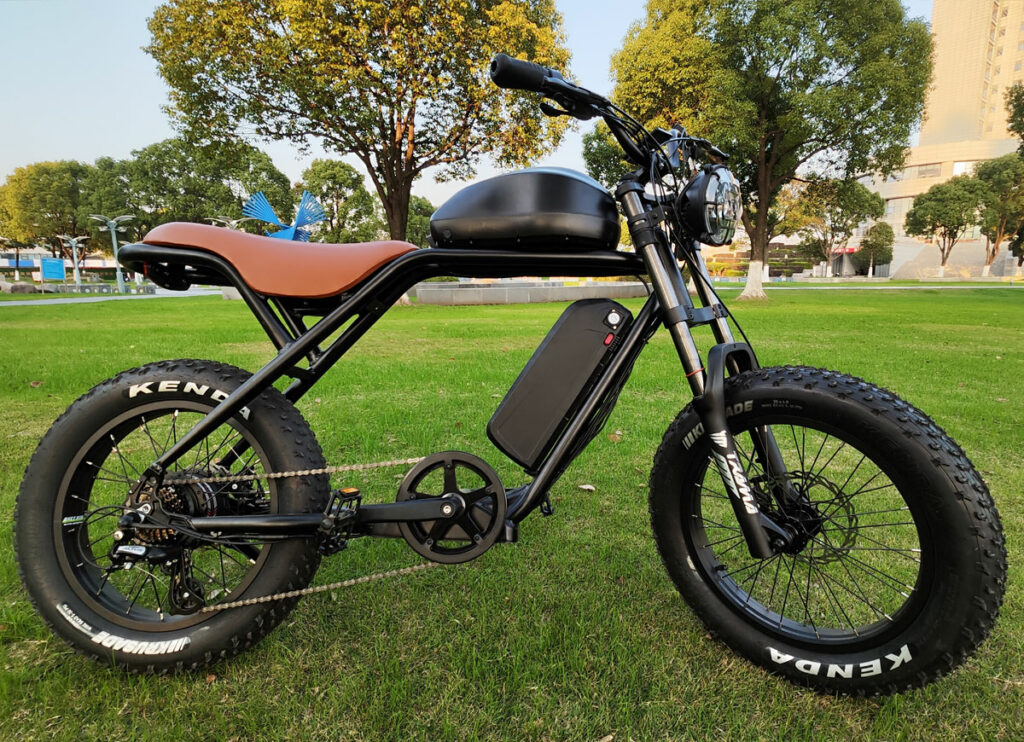

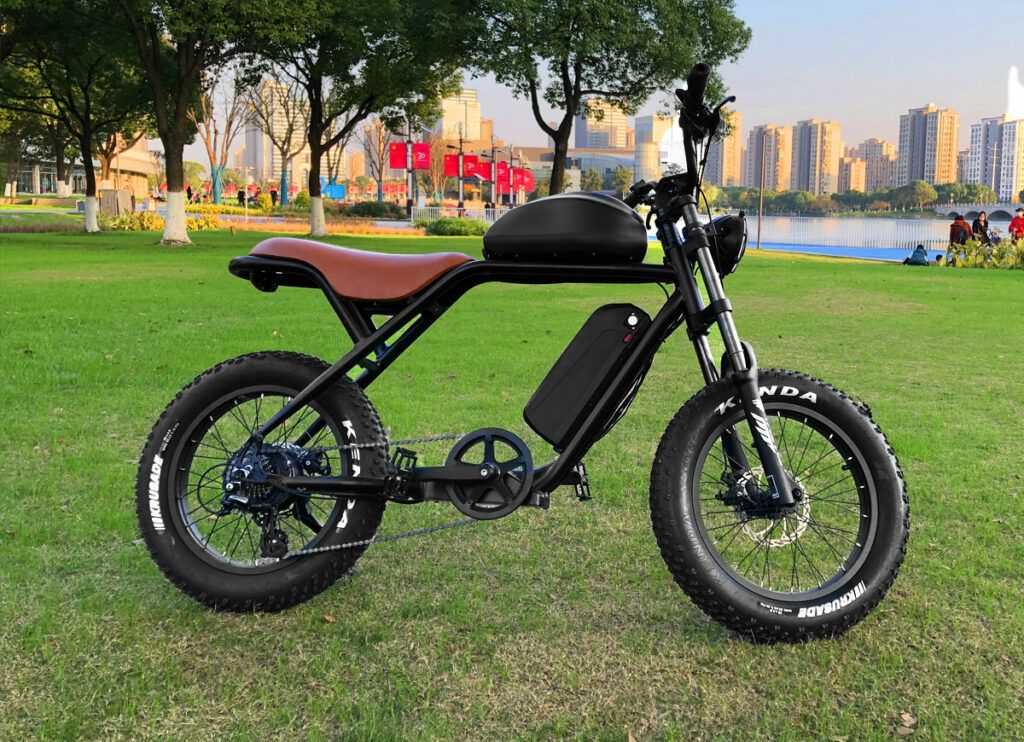

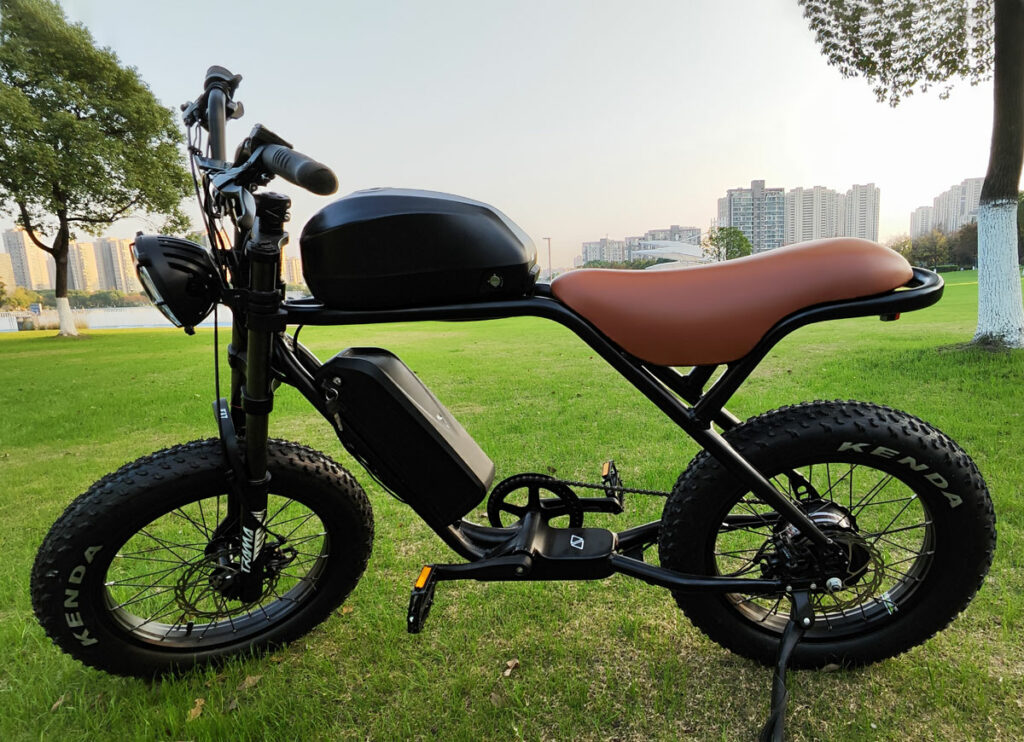

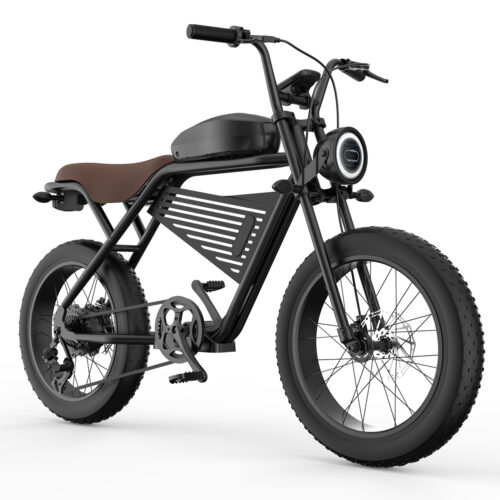

Harley Style Commuter Electric Bike Tough Guy

  • A new model inspired by the old school 70’s harley moto-style. Finished in a two-tone color scheme(midnight black frame and mustard brown saddle), multiple trapezoid geometry design, a chunky frame out of aluminum. The e-bike’s specialized look is what makes it one of a kind
  • 48v 750w/1000w or 52v1000W hub motor is optional for meeting you need
  • The vehicle gets its power from Samsung/LG 52v 20ah hidden battery in its uptube, which not only make space for saddle, adds more seating room but also could upgrade to 31.5 Ah if you’d like and travel 100+ miles per charges.

Samsung/LG Battery

20AH

Motor/<90Nm

52V1000W(48V)

Charger

2.1 Amp

Estimate Range

50-100 Miles

Kenda Tires

20 Inch

Payload Capacity

100 KG

Tires
20" x 4.0" tire

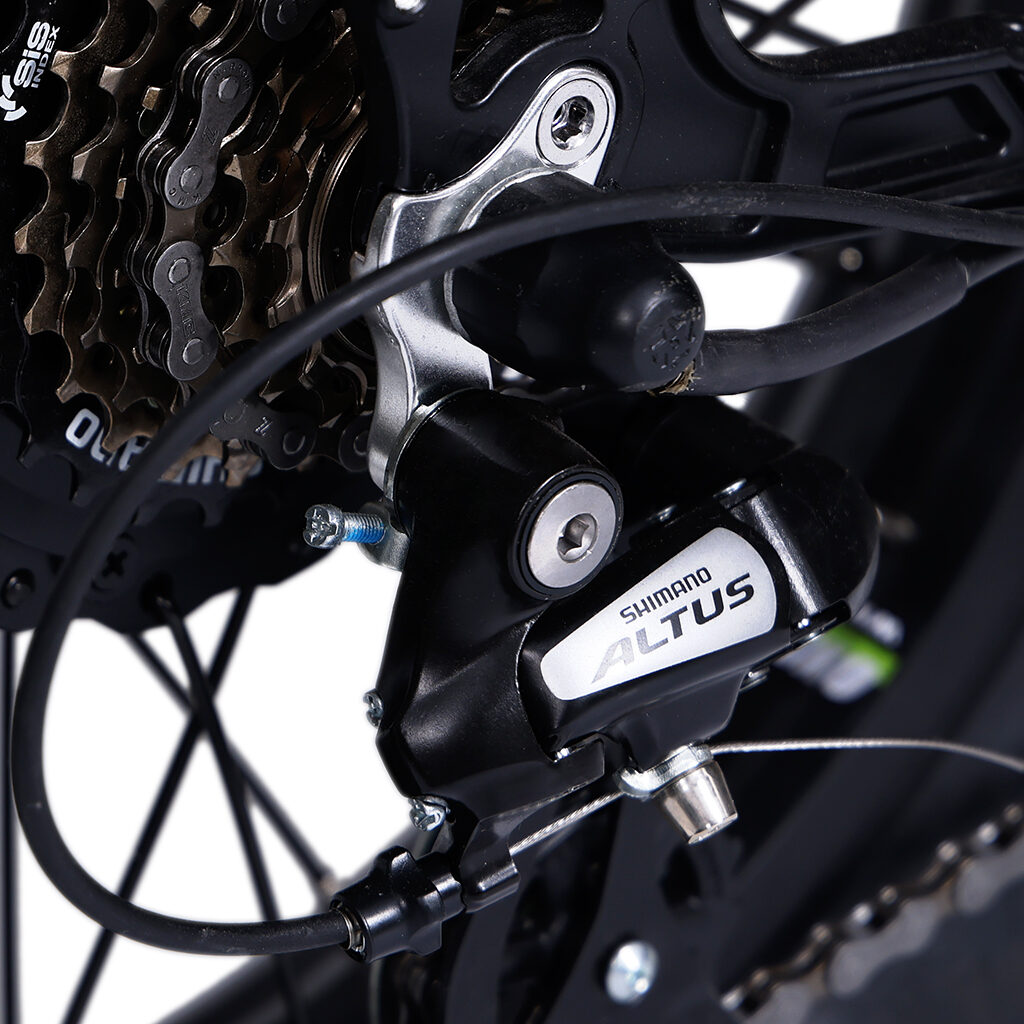

Derailleur
Shimano 7 speed derailleur

Rear Light
48v Integrated brake taillight

Brake
Disc brakes

Ebike Logo
decals custom

Sensor
Sensitive cadence sensor and speed sensor

Crank
170mm forged alloy

Front Suspension Fork
Amazing damping effect

Throttle
Twist the throttle on your right hand to accelerate

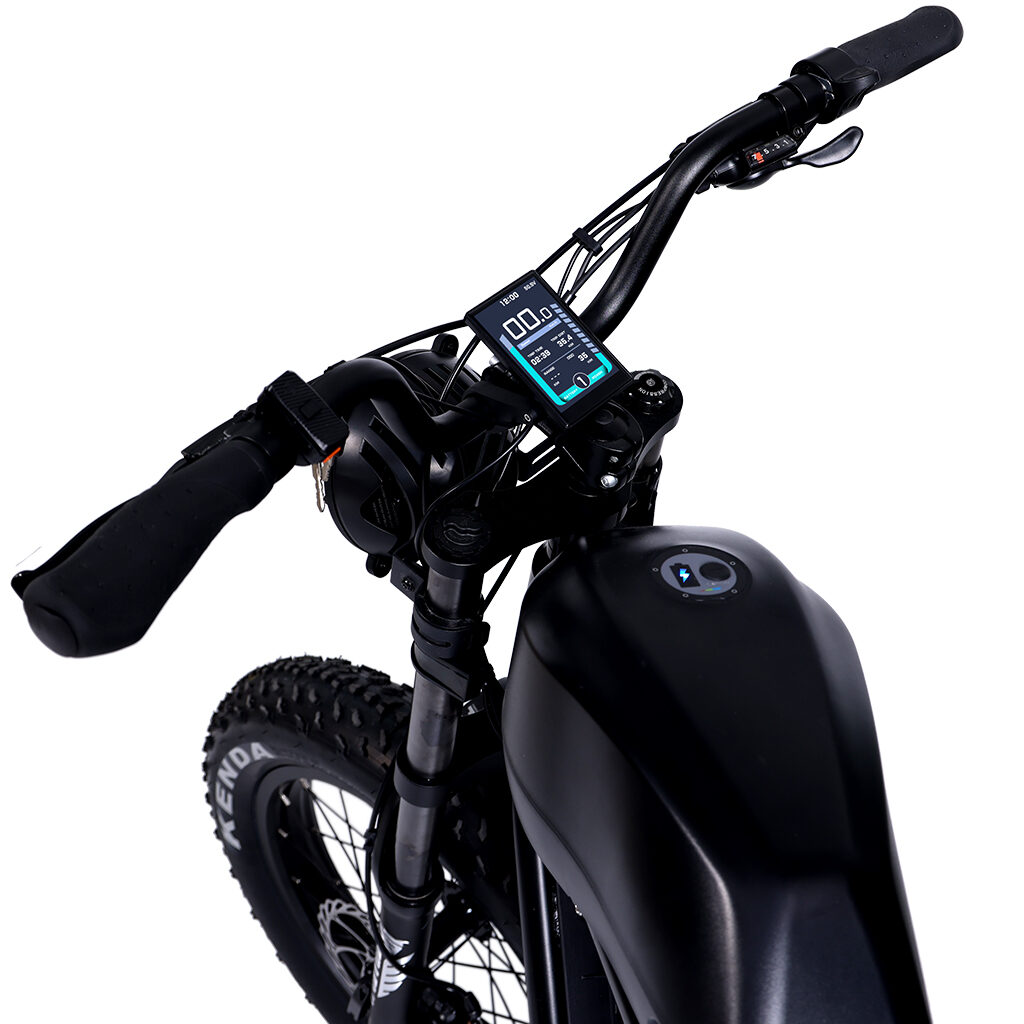

battery holder
power display,DC2.1 charging port, 6PIN discharge port

Bike Frame
6061 Aluminum frame

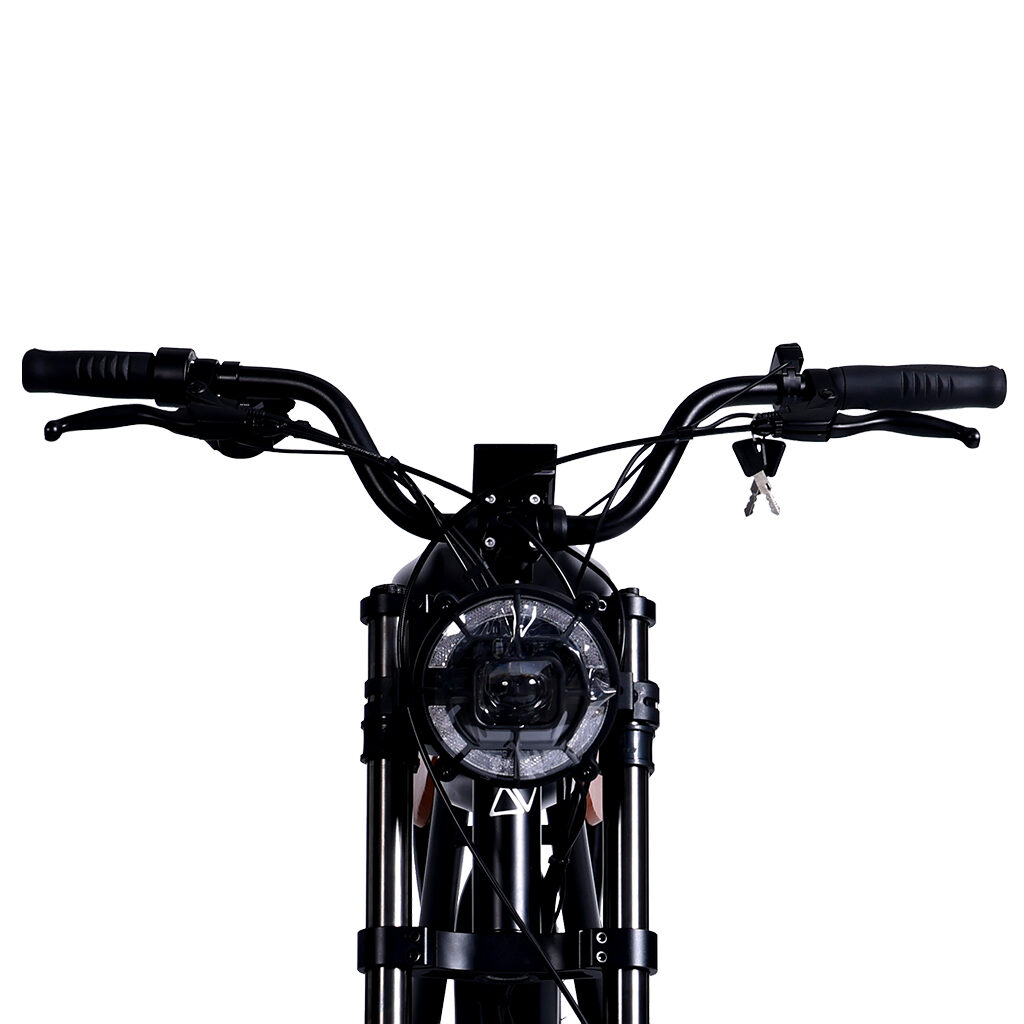

Front Light
48V LED light meet EU standard

Weight
32-36kg

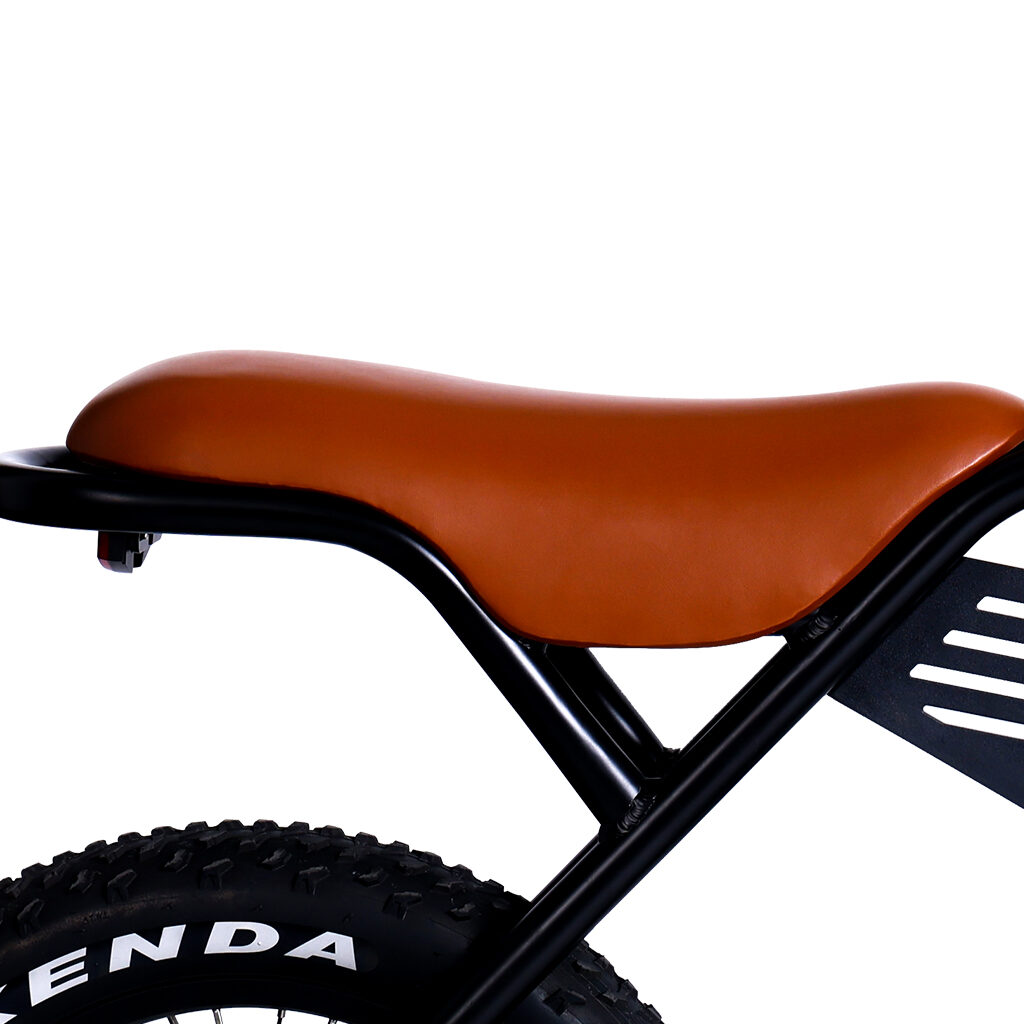

Seat
PP/Leather

Kickstand
Heavy duty aluminum

Spokes
Stainless spokes (Front 12G / Rear 12G)

fork
iron / aluminum

Handlebar Diameter
Sides: 22.2mm / Middle: 25.4mm

8 2
7 4
5 1
214124124
521515151
515151515
1241241111
6 2

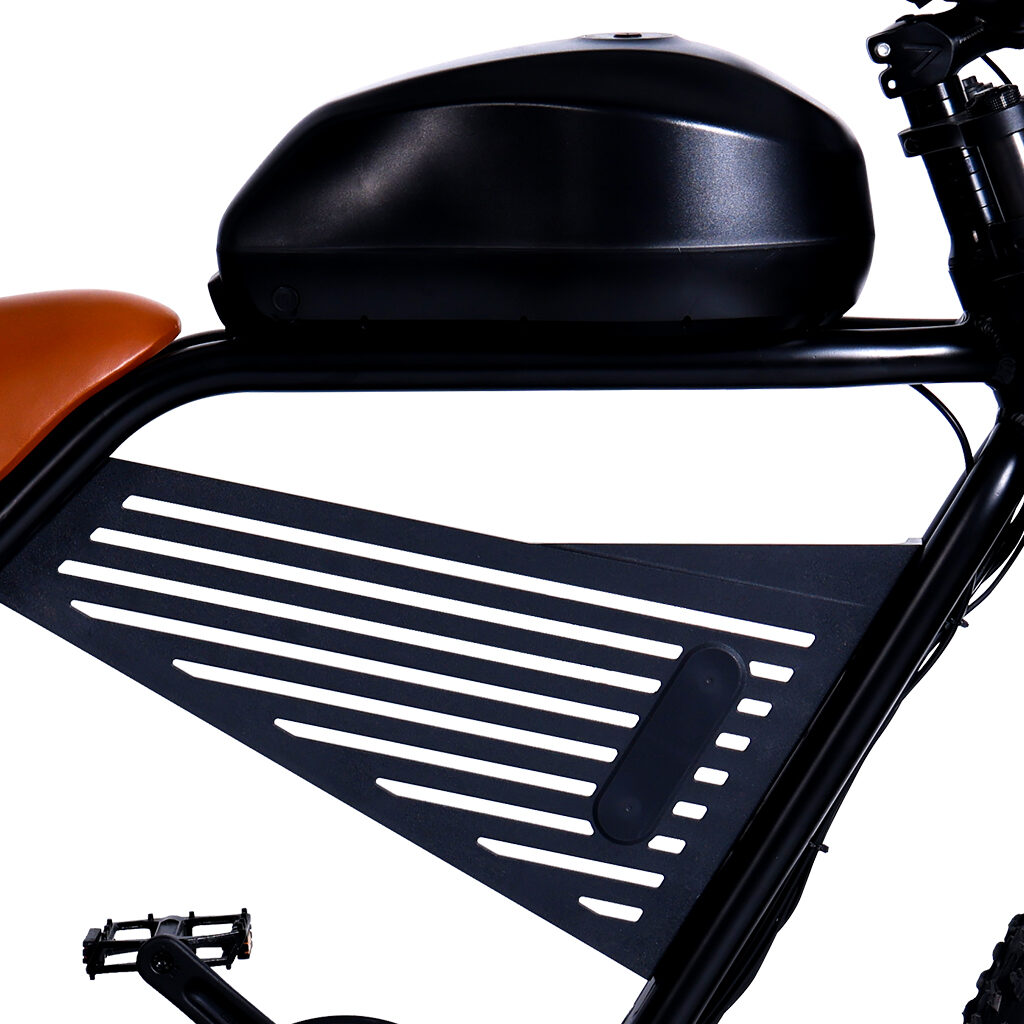

515215151
